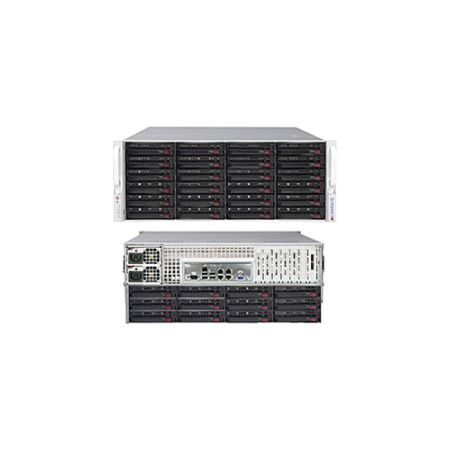

Supermicro SuperServer 6047R-E1R36L Barebone System - 4U Rack-mountable - Intel C602J Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 935380
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
935380
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 6047 SuperServer has excellent expansion capability and feature set.
Product Details
| Item # | 935380 |
| Manufacturer # | 10938687 |
| Number of SATA Interfaces | 6 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 1.28 kW |
| height | 7 in. |
| Certifications & Standards | ACPI 1.0; ACPI 2.0 |
| Total Number of USB Ports | 9 |
| Graphics Controller Manufacturer | Matrox |
| width | 17.2 in. |
| Product Line | SuperServer |
| package contents | SuperServer 6047R-E1R36L (Black); 1 x Super X9DRD-7LN4F-JBOD Motherboard; 1 X 4U Chassis; 1 x 826 Backplane with Single LSI SAS2X28 Expander Chip; 1 x Backplane Supports Upto 24 SAS/SATA; 1 x IPASS TO IPASS 75CM PBF. 26AWG; 3 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG; 1 x External IPASS to Internal IPASS 85CM 2-PORT LP. 26AWG; 1 x IPASS TO IPASS 90CM PBF. 26AWG; 1 x Driver CD for X9 Series; 2 x 2U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM |
| depth | 27.5 in. |
| Product Name | SuperServer 6047R-E1R36L (Black) |
| QuickPath Interconnect Supported | Yes |
| Rack Height | 4U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Number of 3.5" Bays | 36 |
| VGA | Yes |
| weight | 67.02 lb |
| RAID Supported | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 512 GB |
| controller type | Serial ATA/600; Serial ATA/300; 6Gb/s SAS |
| Number of Total Memory Slots | 16 |
| Input Voltage | 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 9 |
| Storage Controller Name | LSISAS2308 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 5 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C602J |
| Number of Total Expansion Bays | 36 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200 |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | 512 GB - registered - ECC ¦ 128 GB - unbuffered |
| color | black |
| Number of SAS Interfaces | 8 |
| warranty length | 3-year limited |
| model name | 6047R-E1R36L |
| QuickPath Interconnect | 8 GT/s |
| Number of PCI Express x8 Slots | 5 |
| Show More ▾ |
